產品名稱：
美制JIC外螺紋 90°彎接頭
產品系列搜索
請選擇您想要尋找的相關產品系列
產品描述

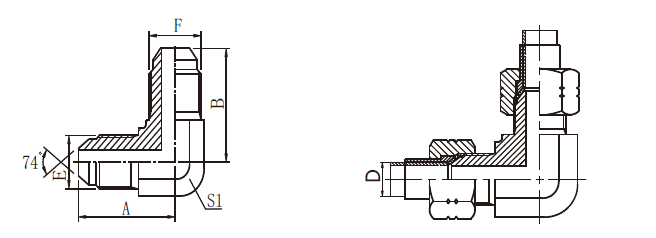

| 訂貨號 | 螺 紋 | 尺 寸 | ||||||
| E | F | A | B | S1 | ||||
| AJ-04/9 | 7/16"X20 | 7/16"X20 | 24.5 | 24.5 | 11 | |||
| AJ-06/9 | 9/16"X18 | 9/16"X18 | 26.9 | 26.9 | 14 | |||
| AJ-08/9 | 3/4"X16 | 3/4"X16 | 32 | 32 | 19 | |||
| AJ-10/9 | 7/8"X14 | 7/8"X14 | 37.8 | 37.8 | 22 | |||
| AJ-12/9 | 1.1/16"X12 | 1.1/16"X12 | 44.2 | 44.2 | 27 | |||
| AJ-16/9 | 1.5/16"X12 | 1.5/16"X12 | 49 | 49 | 33 | |||
| AJ-20/9 | 1.5/8"X12 | 1.5/8"X12 | 55.5 | 55.5 | 41 | |||
| AJ-24/9 | 1.7/8"X12 | 1.7/8"X12 | 62.5 | 62.5 | 48 | |||
| AJ-32/9 | 2.1/2"X12 | 2.1/2"X12 | 78 | 78 | 63 | |||
注：螺母及襯套需另行訂貨，配用螺母及襯套分別選用SJN、SJS。
